EPLANT-STH

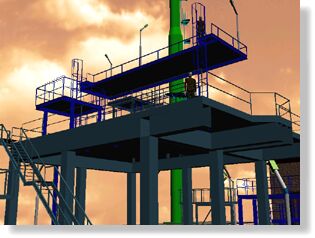

3D MODELS OF STRUCTURES, CABLE TRAY AND HVAC

EPLANT-STH is a computer aided design system to generate 3D parametric models of Structures, Cable Trays, HVAC and automatic MTO. Fully integrated in the AutoCAD/ZWCAD environment the COPY, MOVE, DELETE and MIRROR commands can be used without any restriction.

Plan views can either be generated by EPLANT-STH as well as with EPLANT-Piping.

The material take off is automatically done, as well as the weight and painting area calculation.

This module is full compatible with EPLANT-Piping used to generate piping and equipment models.

Detailed Description of current 2017.0 Version.



History of Changes in Older Versions.

The following material is available. Select the required file to download: no reference data will be required.



Last updated May 28, 2017.

File Content File Name Date Size Kb
Animated Demo
It is a general presentation about the system. It shows a typical working session in both the Graphic and Data Base modules.
Duration: 11 minutes.
Dec 18, 2008 2670
EPLANT-STH V2017.0
For AutoCAD 2004-2018, ZWCAD+ 2012, ZWCAD+ 2014 SP1, ZWCAD+ 2015 SP2.1 and BricsCAD V17 (BricsCAD in beta version).
It is a Full Version: needs a hard-lock or a Web License in case of Leasing. Also Included: User Manual and Multimedia Training Tutorial.
You can request a Web License free of charge for a month for testing Request Web License for testing.
sthe_2017.exe May 28, 2017 20728
